Angle Valve

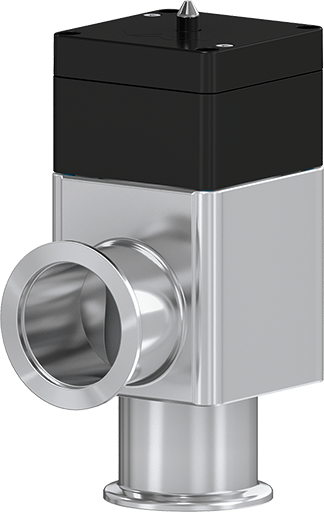

Providing excellent reliability at large flow rates, this vacuum valve is widely used in various industrial fields for exhaust, process, ventilation and other scenarios.
Service Hotline+49 69 2713769195
|
Features |
- Built on a reliable and robust core design, the pneumatic angle valve offers a wide range of design options.
- Available in DN25, DN40, and DN50 to accommodate diverse application needs.
- The valve can be operated via solenoid valves either mounted directly on the device or from remote locations.
- Usable under varying temperature conditions depending on the selected sealing elastomer.
- Configurable as normally open, normally closed, or double-acting to suit specific requirements.
- In addition to standard options, further customization is available to meet specialized demands.
|

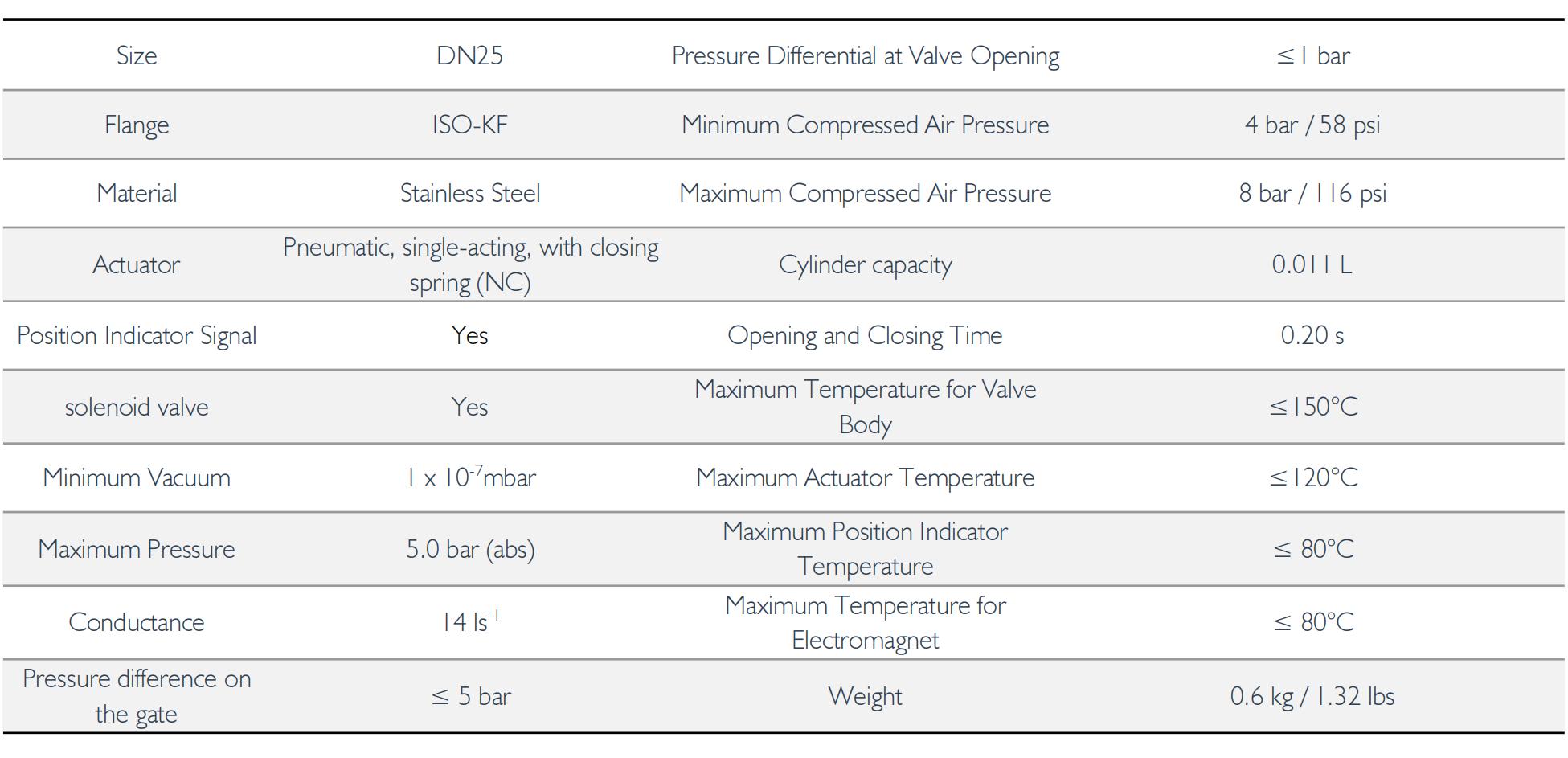

DN25Specifications |
| DN25 Specifications | |||
|
Dimensions |
DN25 |
Pressure differential at opening |
≤1 bar |
|
Flange |
ISO-KF |
Low compressed air pressure |
4 bar / 58 psi |
|
Material |
Stainless steel |
High compressed air pressure |
8 bar / 116 psi |
|
Actuator |
Pneumatic, single acting, with closing spring (NC) |
Cylinder volume |
0.011 L |
|
Position indication signal |
Yes |
Close open time |
0.20 s |
|
Solenoid valve |
Yes |
High temperature valve body |
≤150°C |
| Low pressure | 1 x 10-7mbar |
High temperature driver |
≤120°C |
| High pressure | 5.0 bar (abs) | High temperature position indicator |
≤ 80°C |
|
Conductivity |
14 ls-1 |
High temperature electromagnet |
≤ 80°C |
|
Pressure difference on the gate |
≤ 5 bar |
Weight |
0.6 kg / 1.32 lbs |
|

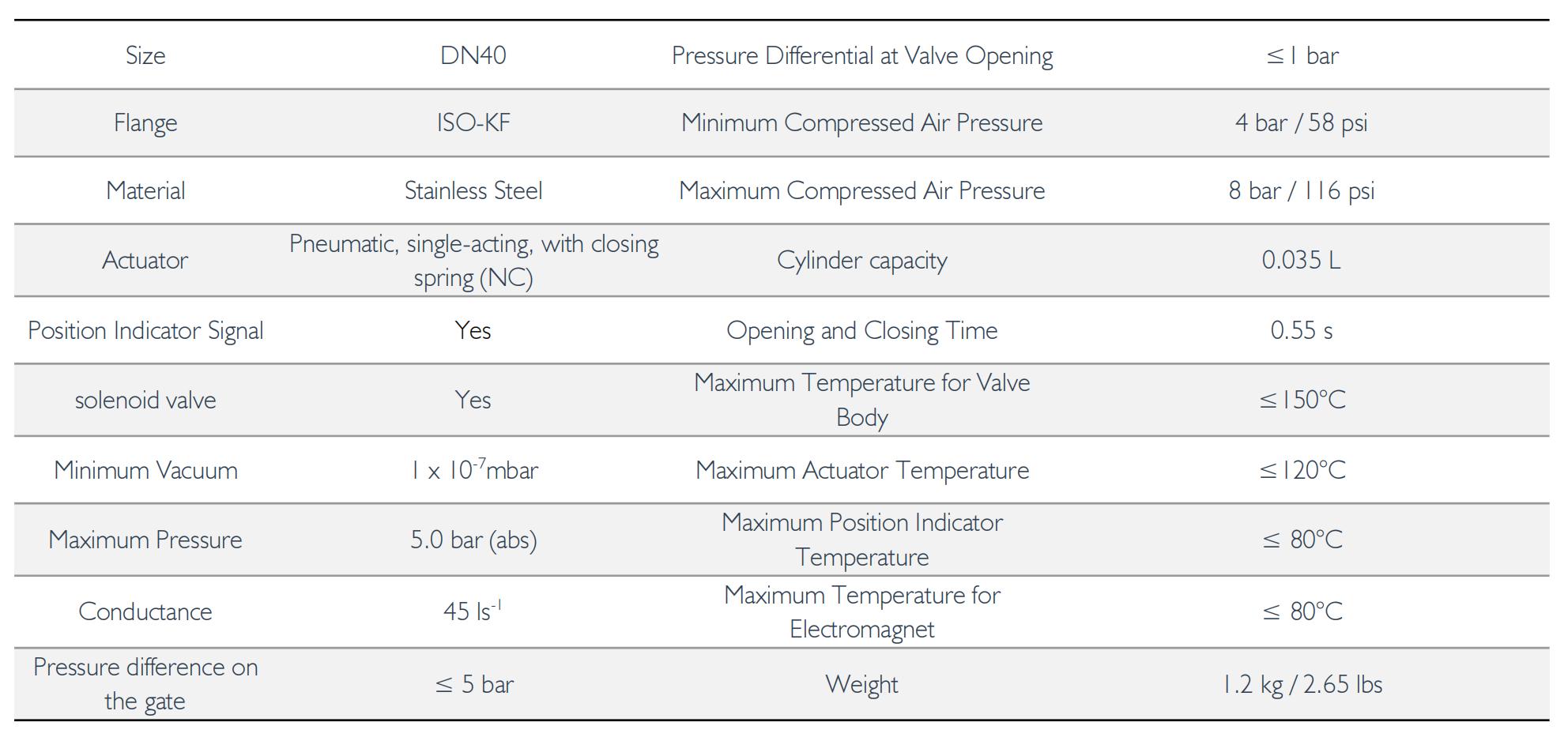

DN40Specifications |
|
DN40 Specifications |
|||
|
Dimensions |
DN40 |
Differential pressure at opening |
≤1 bar |
|
Flange |
ISO-KF |
Low compressed air pressure |
4 bar / 58 psi |
|
Material |
Stainless steel |
High compressed air pressure |
8 bar / 116 psi |
|
Driver |
Pneumatic, single acting, with closing spring (NC) |
Cylinder volume |
0.035 L |
|
Positioning indication signal |
Yes |
Close open time |
0.55 s |
|
Solenoid valve |
Yes |
High temperature valve body |
≤150°C |
| Low pressure | 1 x 10-7mbar |
High temperature driver |
≤120°C |
| High pressure | 5.0 bar (abs) | High temperature position indicator |
≤ 80°C |
|
Conductivity |
45 ls-1 |
High temperature electromagnet |
≤ 80°C |
|
Differential pressure across the gate |
≤ 5 bar |
Weight |
1.2 kg / 2.65 lbs |
|
DN50Specifications |
|
DN50 Specifications |
|||
|
Dimensions |
DN50 |
Pressure differential when opening |
≤1 bar |
|
Flange |
ISO-KF |
Low compressed air pressure |
4 bar / 58 psi |
|
Material |
Stainless steel |
High compressed air pressure |
8 bar / 116 psi |
|
Actuator |
Pneumatic, single acting, with closing spring (NC) |
Cylinder volume |
0.047 L |
|
Position indication signal |
Yes |
Close open time |
0.65 s |
|
Solenoid valve |
Yes |
High temperature valve body |
≤150°C |
| Low pressure | 1 x 10-7mbar |
High temperature driver |
≤120°C |
| High pressure | 5.0 bar (abs) | High temperature position indicator |
≤ 80°C |
|
Conductivity |
80 ls-1 |
High temperature electromagnet |
≤ 80°C |
|
Pressure difference across the gate |
≤ 5 bar |
Weight |
1.7 kg / 3.748 lbs |
