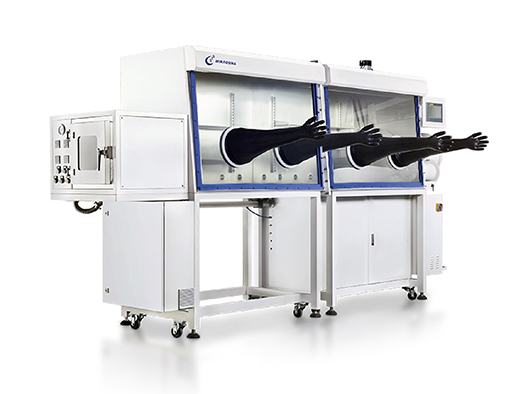

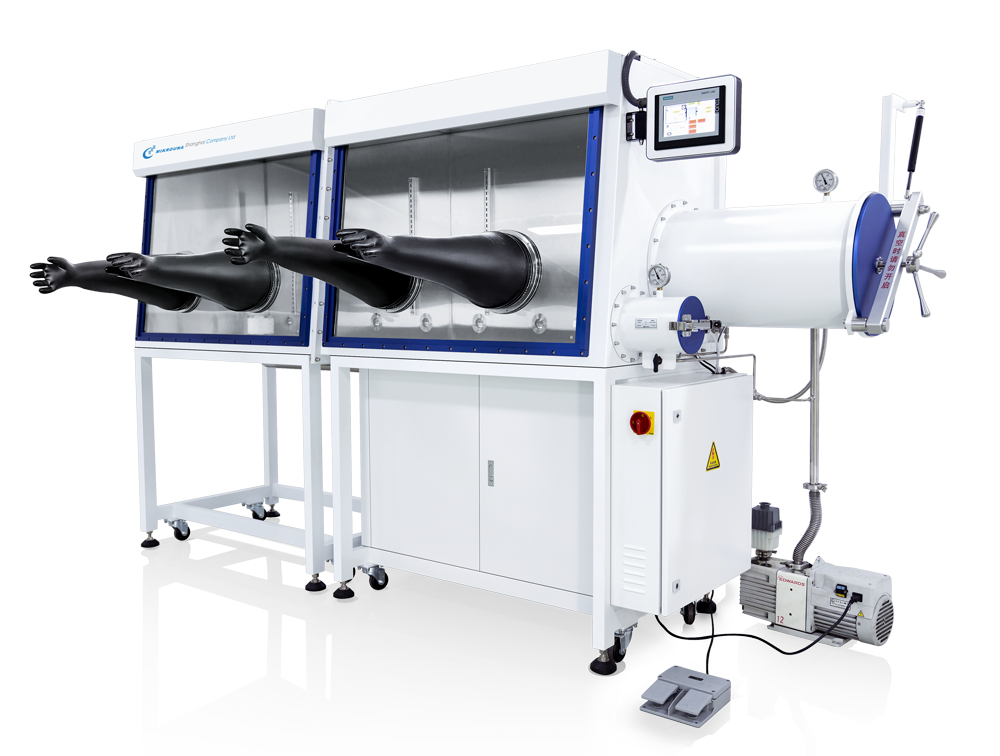

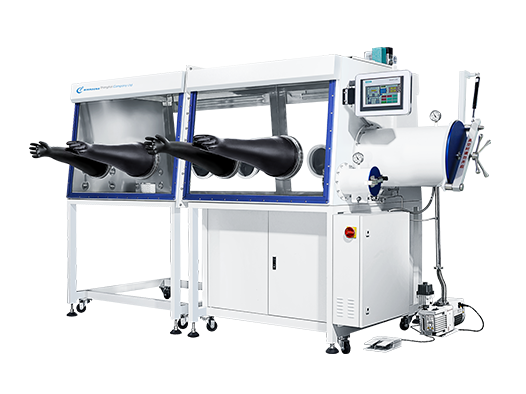

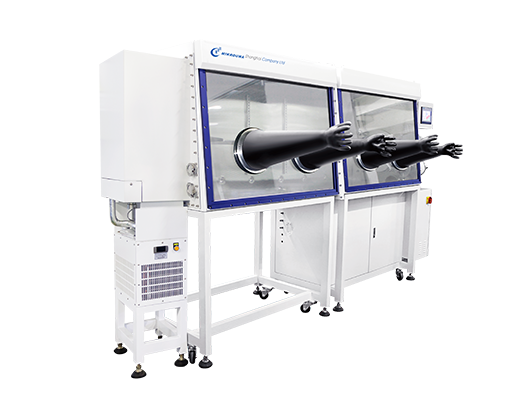

Universal Glove Box
R & D type, small-scale production, scalable, customizable
Service Hotline+49 69 2713769195
 |
 |
 |
|
Features |
||
| ●The intelligent system of the Internet of things can be installed to realize the mobile control and centralized management of the glove box, which is safe and secure. It has real-time synchronization of equipment status, equipment data report records, historical data can be inquired, alarm messages are actively notified, equipment remote debugging, fault online diagnosis and online repair, online customer service and other intelligent functions. | ||
|
● Control system: Siemens PLC |
||
|
● Purifier: Single column |
||
|
● Water content: <1ppm |
||
|
● Oxygen content: <1ppm |
||
|
Product Specifications |
||
|
Glove Box |
||
|
Box body |
Material: 304 stainless steel, thickness 3mm |
|
|
Exterior surface: spray-plastic (color can be customized) |
||
|
Inner surface: oil film drawing surface |
||
|
Internal dimensions: single section of different lengths 1500, 1800, 2440, 3660, 4880, 7320mm Different depth 750, 1000, 1200mm
Height 900mm
|
||
|
Front window |
O-Ring vacuum flange seal, tempered glass thickness 8mm |
|
|
Glove opening |
Material is aluminum alloy: O-ring seal |
|
|
Glove |
Butyl rubber: Thickness 0.4mm, diameter 7'' or 8'' |
|
|
Filter |
Specification: 0.3μm, one gas inlet and one gas outlet |
|
|
Supporter
|
Material: Stainless steel, built-in 3 layers, adjustable height |
|
|
Box lighting |
Location: LED light, installed in the lampshade |
|
|
Interface |
Specifications: DN40KF, several standby interfaces, 1 power interface (220V) |
|
|
|
||
|
Purification Unit |
||
|
Purification column |
Function: Gas sealing, water removal and oxygen removal |
|
|
Container material: 304 stainless steel |
||
|
Purification material: Copper catalyst 5kg, molecular sieve 5kg |
||
|
Purification capacity: Oxygen removal 60L, water removal 2kg |
||
|
Water and oxygen index: <1ppm |
||
|
Circulatory system |
Working gas: Nitrogen, argon, helium |
|
|
Circulation capacity: Integrated fan flow rate 90m³/h (Higher fan flow available: 145m²/h, 180m²/h) |
||
|
Regeneration |
Operation: PLC automatically controls the regeneration process |
|
|
Regeneration gas: Mixed gas of working gas and hydrogen (hydrogen 5%-10%) |
||
|
Vacuum pump |
Specification: 12m³/h, 16m³/h |
|
|
Rotary vane pump: With oil mist filter, air vibration control |
||
|
Valve |
Main valve: DN40KF, electropneumatic angle valve |
|
|
Control valve: Solenoid integrated valve |
||
|
|
||
|
Transition Bin |
||
|
Big transition bin |
Bin body |
Size: Diameter 360mm, length 600mm (optional diameter 400mm) |
|
Material: 304 stainless steel |
||
|
Surface treatment: The inner surface is oil film drawing surface, and the outer surface is spray-plastic or mirror surface |
||
|
Accessory |
Tray: Sliding tray |
|
|
Bin gate: Dual doors, with anodized aluminum material,Thickness 10mm, vertical operation，with lift structure |
||
|
Pressure meter: Analog display |
||
|
Control |
Operation: Automatic control |
|
|
Small transition bin |
Bin body |
Size: Diameter 150mm,Length 300mm |
|
Material: 304 stainless steel |
||
|
Surface treatment: The inner surface is oil film drawing surface, and the outer surface is spray-plastic or mirror surface |
||
|
Accessory |
Bin gate: Dual doors |
|
|
Pressure meter: Analog display |
||
|
Control |
Operation: Manual operation |
|
|
|
||
|
Control System |
||
|
Description |
Display: Siemens S7 |
|
|
Function: Including self-diagnosis, power-off and self-starting features, with pressure control and adaptive functions, automatic control, cycle control, password protection |
||
|
Pressure control: Control the pressure of the box and transition chamber. The working pressure of the box can be freely set within+/-15mbar, and the system will automatically protect it if it exceeds+/-16mbar |
||
|
Foot switch: The air pressure in the box can be adjusted by the foot switch |
||
|
Data memo: Automatically record system data |
||
|
|
||
|
Accessories |
||
|
Vacuum pump |
Specifications: 12m³/h, 16m³/h |
|
|
Oxygen analyzer |
Measuring range: 0～1000ppm |
|
|
Moisture analyzer |
Measuring range: 0～500ppm |
|
|
|
||
|
|
||
